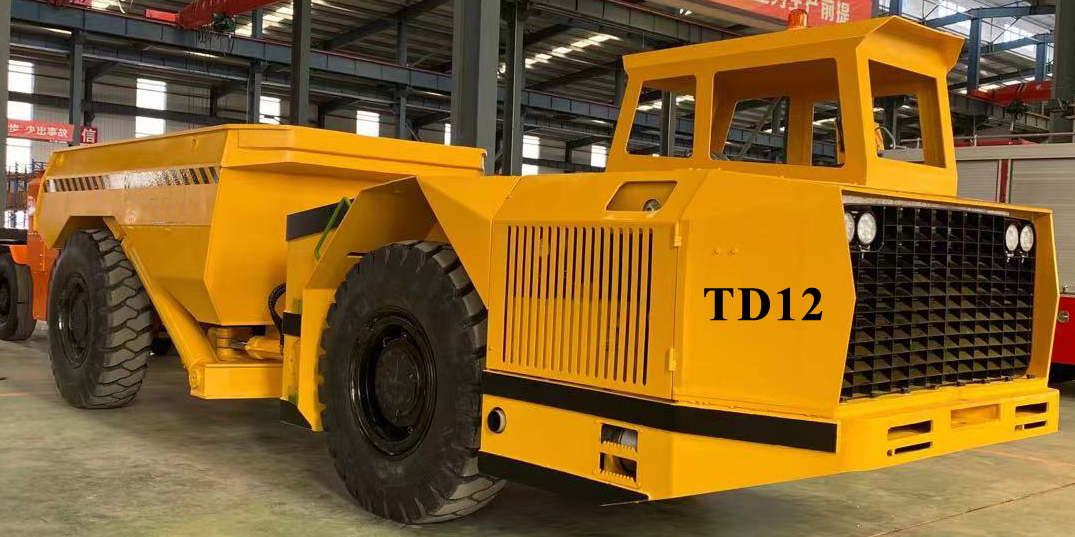

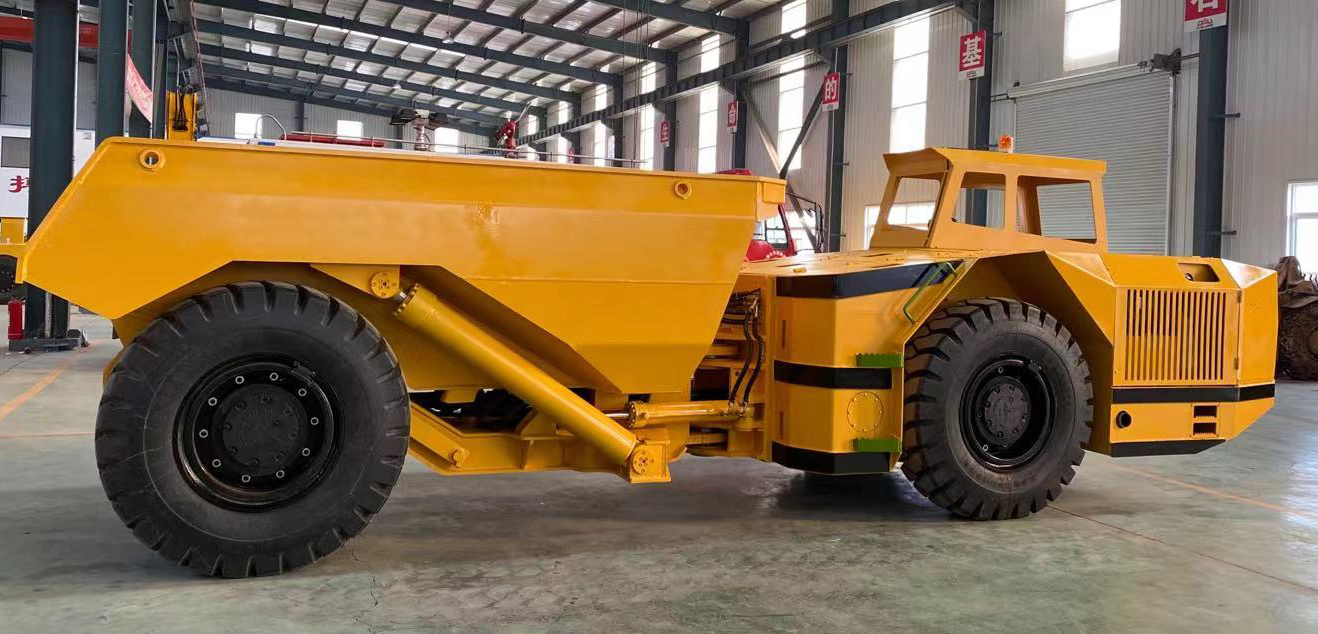

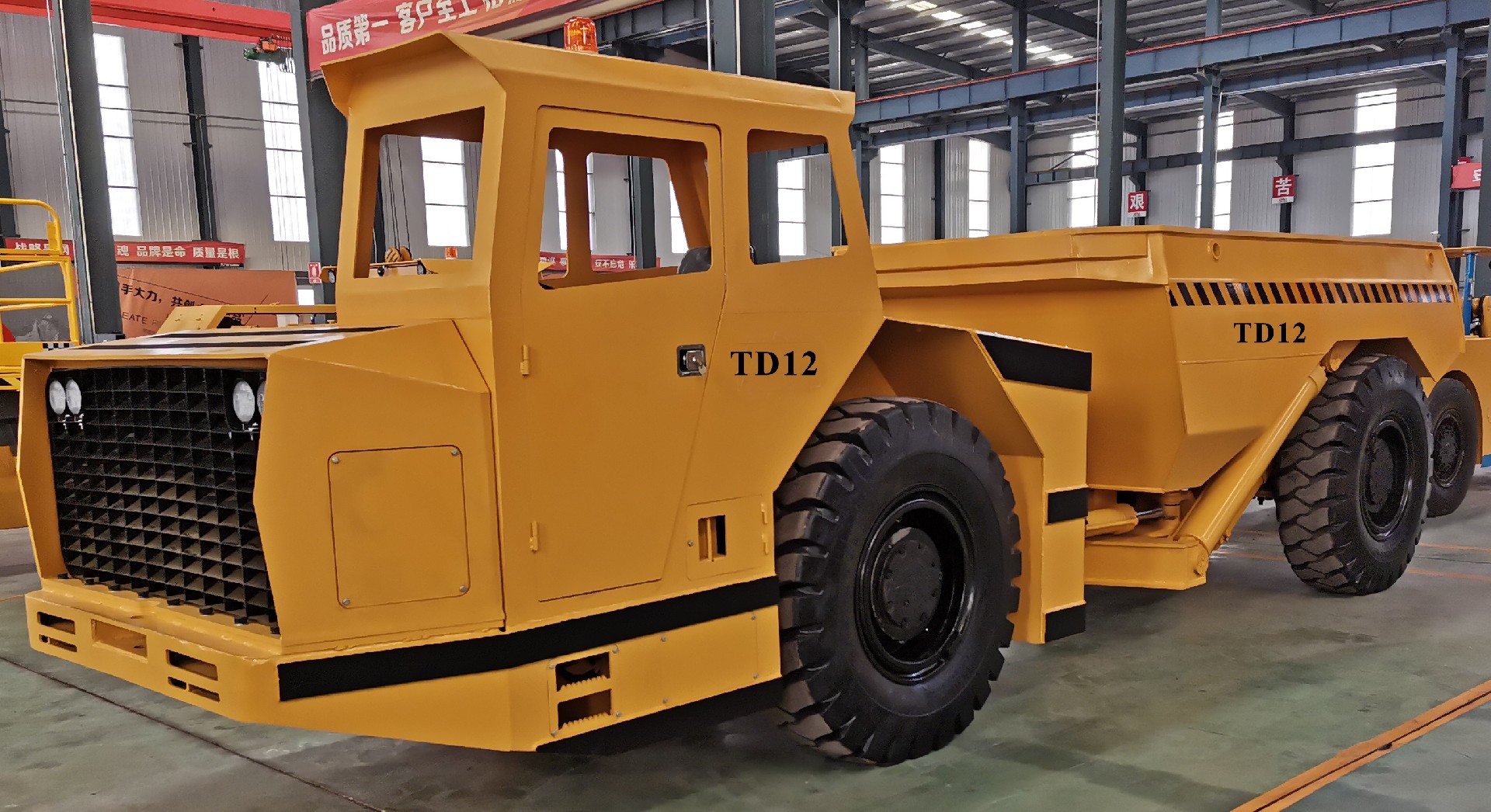

TD12 - 12T Dump Truck

TD12 has the same configuration with TD10, and the only difference is the overall dimension and bucket size.


With articulated structure, the truck is specially designed for underground working with narrow tunnel.


Special design and reinforced structure to improve the efficiency and ensure easy repair and maintenance.


Main spare parts can be sourced locally to ensure the quick repair of the equipment.








Engine: DEUTZ F6L914 (BF4M1013EC optional)

Engine Power: 84kw

Drivetrain: Dana torque converter and transmission

Standard Bucket: 2m3

Rated Load: 4000kgs

Operation weight: 13500kgs

Laden weight: 17500kgs

Max. Lifting Height: 3975mm

Max. Unloading Height: 1740mm

Axle: Rigid Planetary Axle with NO-SPIN differential and SAHR brake

Tire: 12.00-24-16PR L-4S

Overall dimension: 7000*1800*2080mm
