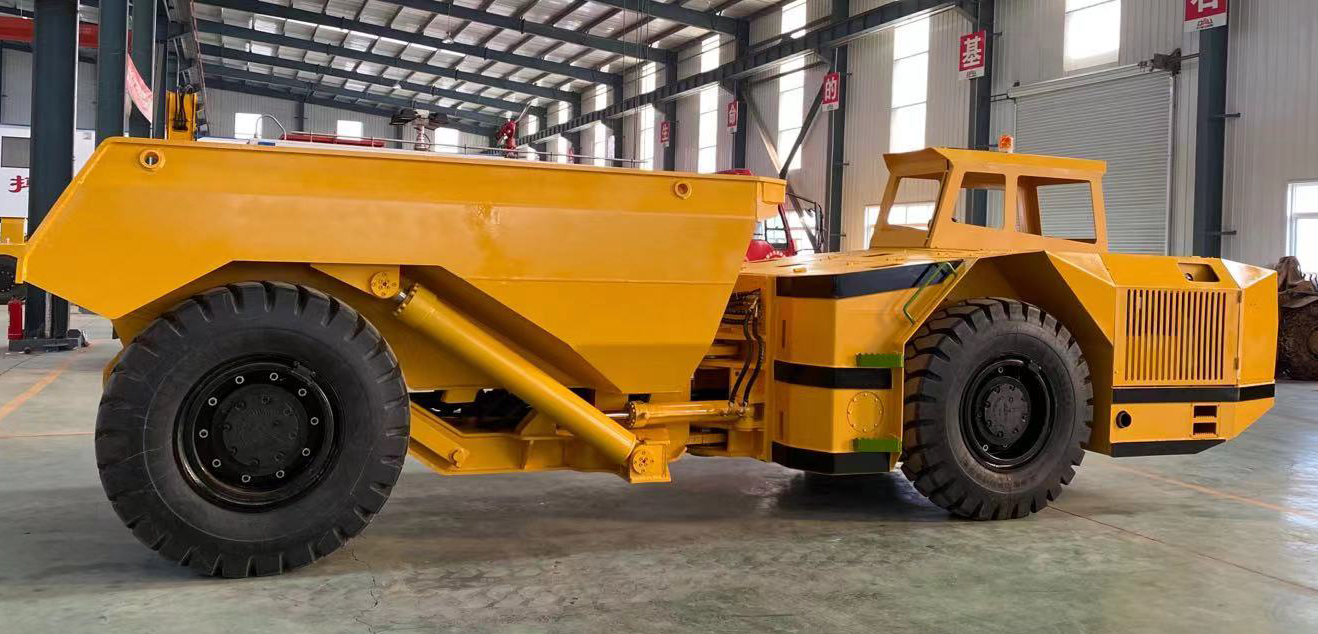

TD10 - 10T Dump Truck

TD10 has the same configuration with TD12, and the only difference is the overall dimension and bucket size.


With articulated structure, the truck is specially designed for underground working with narrow tunnel.


Special design and reinforced structure to improve the efficiency and ensure easy repair and maintenance.


Main spare parts can be sourced locally to ensure the quick repair of the equipment.









Engine: Cummins QSB4.5-C160-30, Deutz engine optional

Engine Power: 119KW

Drivetrain: Dana torque converter and transmission

Standard Bucket: 5m3

Rated Load: 1000kgs

Operating Weight: 12800kgs

Axle: Meritor/Dana axle available

Overall dimension: 7575*1945*2315mm

Bucket discharging angle: 70°

Bucket discharging height: 4150mm
