LHD / Scoop

Central articulated structure with Deutz, Cummins and Volvo engine, Dana transmission, Dana & Kessler Axle to ensure the performance underground.

Till now, full range of LHD are available, such TS02 with rated load of 2T, TS04 with rated load of 4T, TS06 with rated load of 6T and TS08 with rated load of 10T.

All these models have been tested on domestic market for long time, and are also exported to more than 10 countries and regions such as Laos, Sudan, Kazakhstan, Russia, Peru, Chile, etc

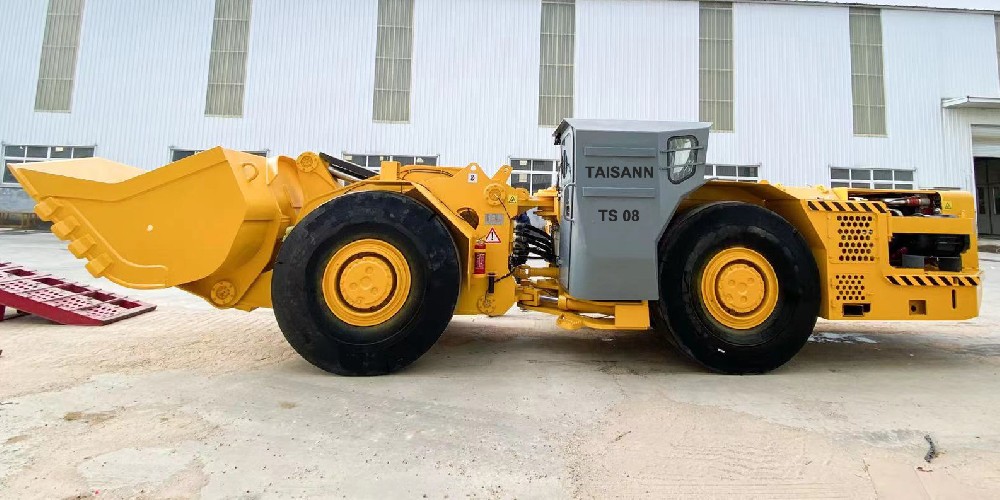

TS08 - 4m3 LHD with rated load of 10T

4 wheels driving & braking with combination design of parking brake & working brake ensures good braking performance. Braking model is SAHR (spring applied, hydraulic release).

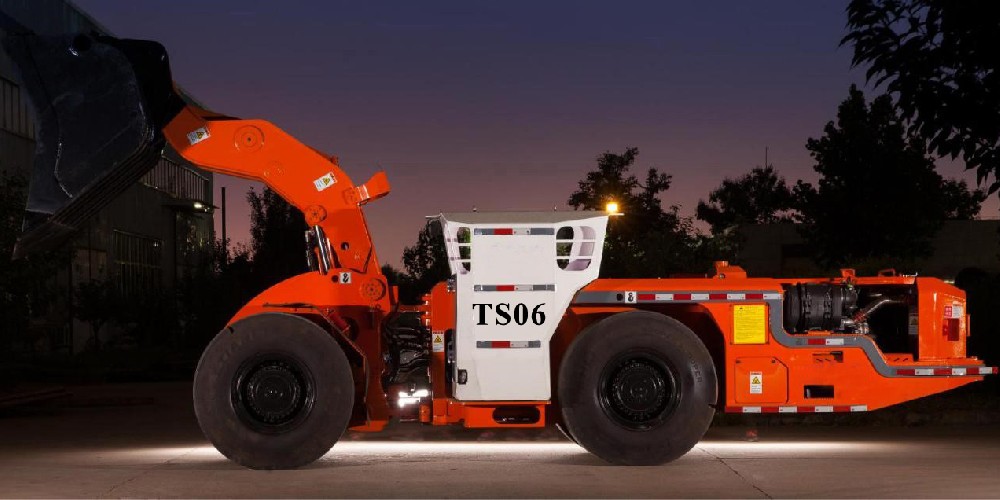

TS06 - 3m3 LHD with rated load of 6.5T

4 wheels driving & braking with combination design of parking brake & working brake ensures good braking performance. Braking model is SAHR (spring applied, hydraulic release).

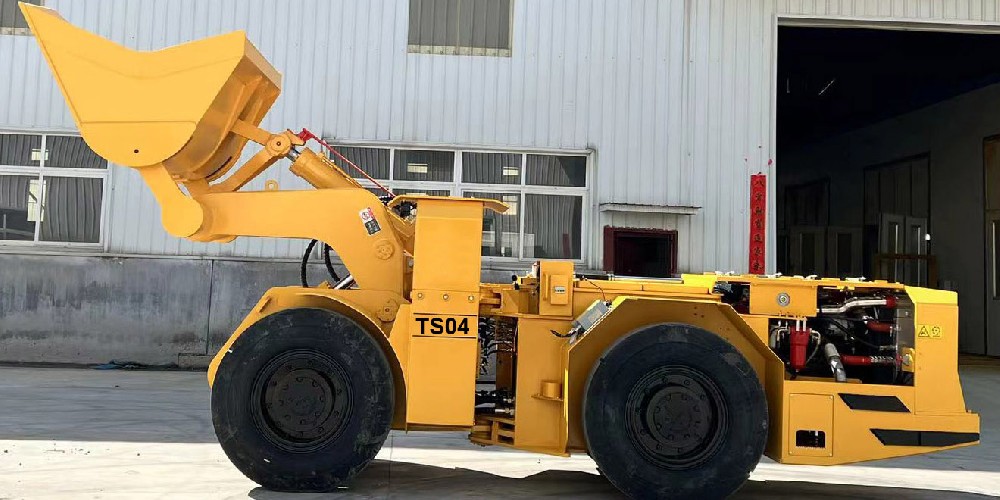

TS04 - 2m3 LHD with rated load of 4T

4 wheels driving & braking with combination design of parking brake & working brake ensures good braking performance. Braking model is SAHR (spring applied, hydraulic release).

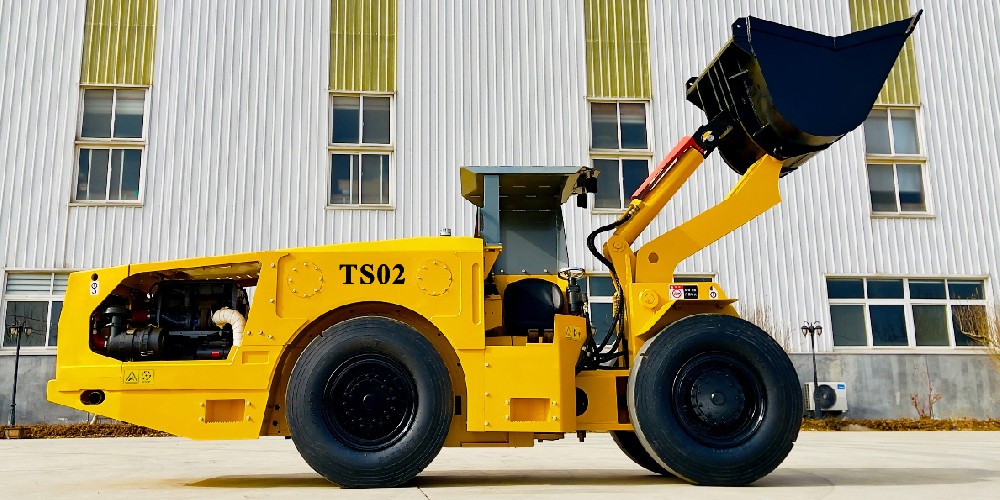

TS02 - 1m3 LHD with rated load of 2T

TS02 is a compact and lightweight Load Haul Dump (LHD) for narrow tunnel mining, easy to operate and maintain, and it features an operator compartment that is located in the rear frame of the machine to ensure increased operator safety. The TS02 is full of features to help mines maximize ton and min
